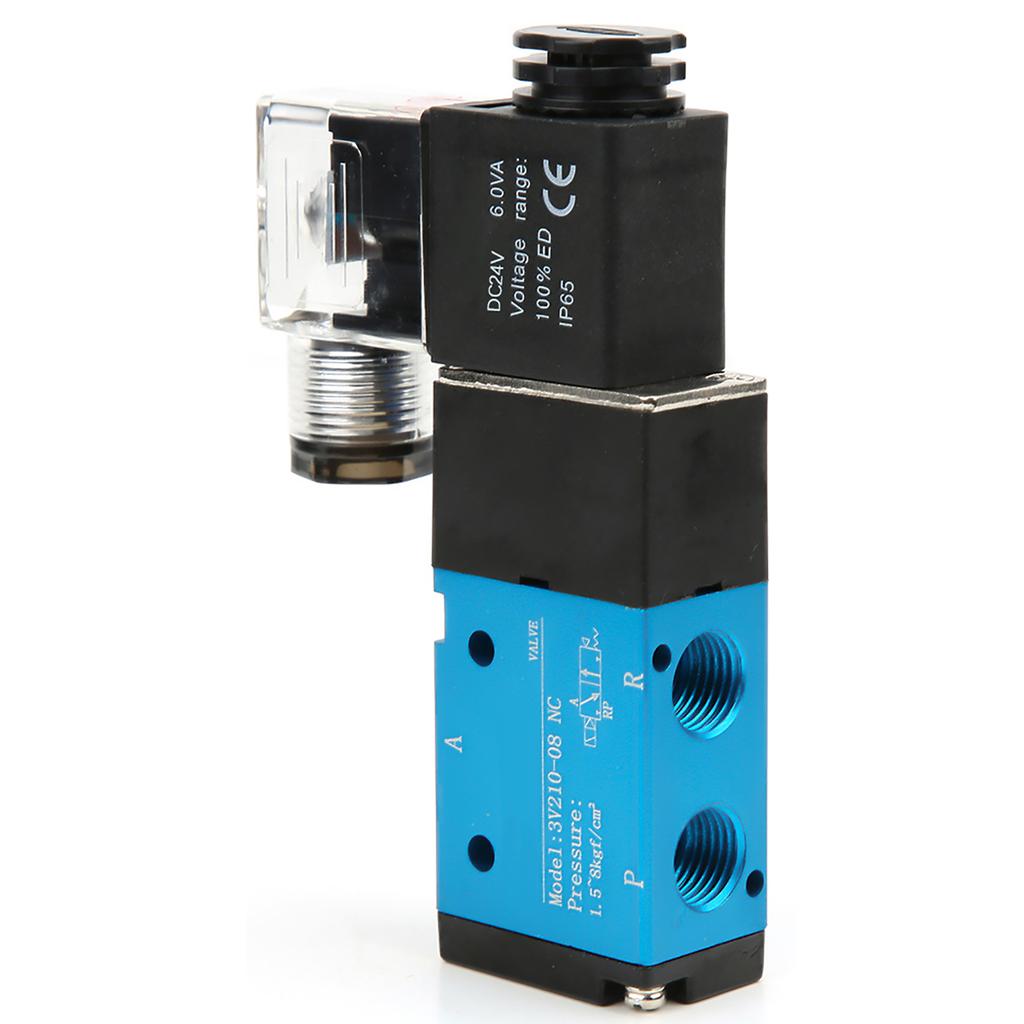

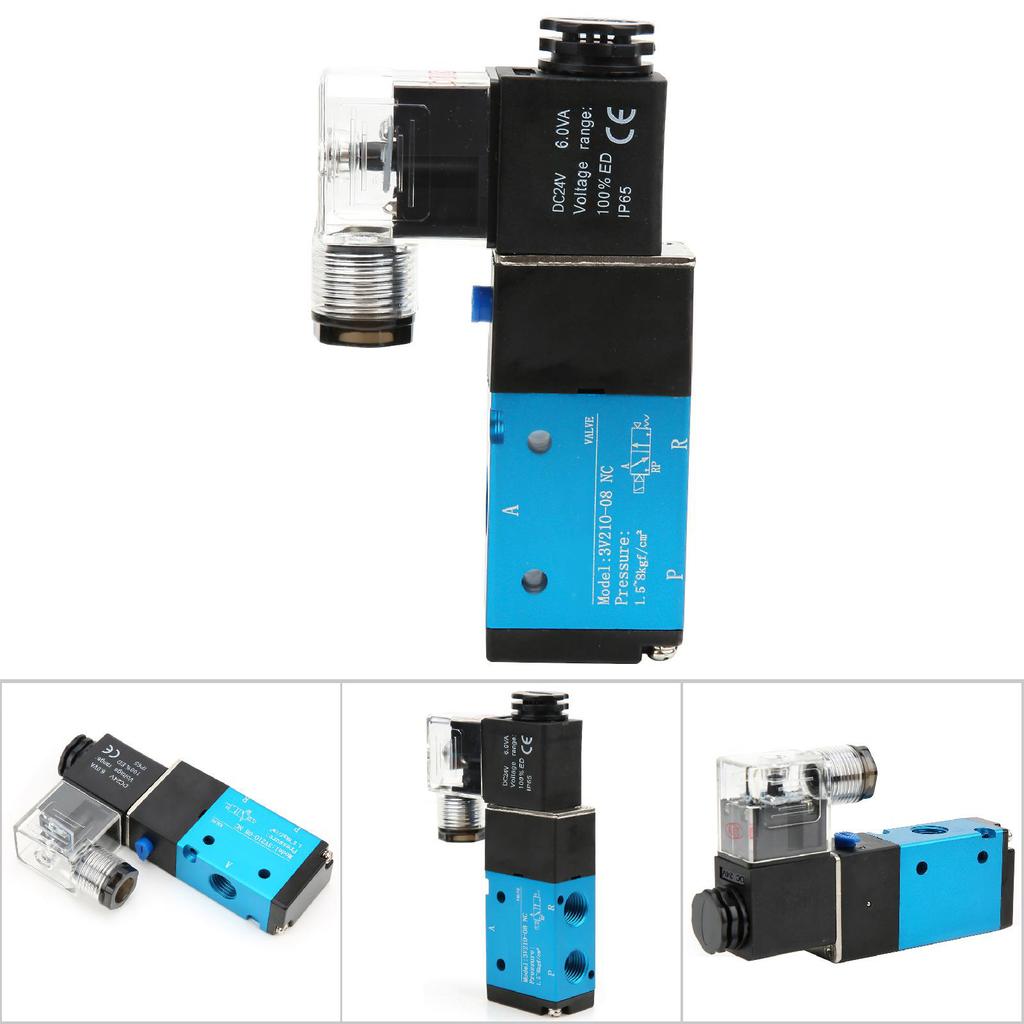

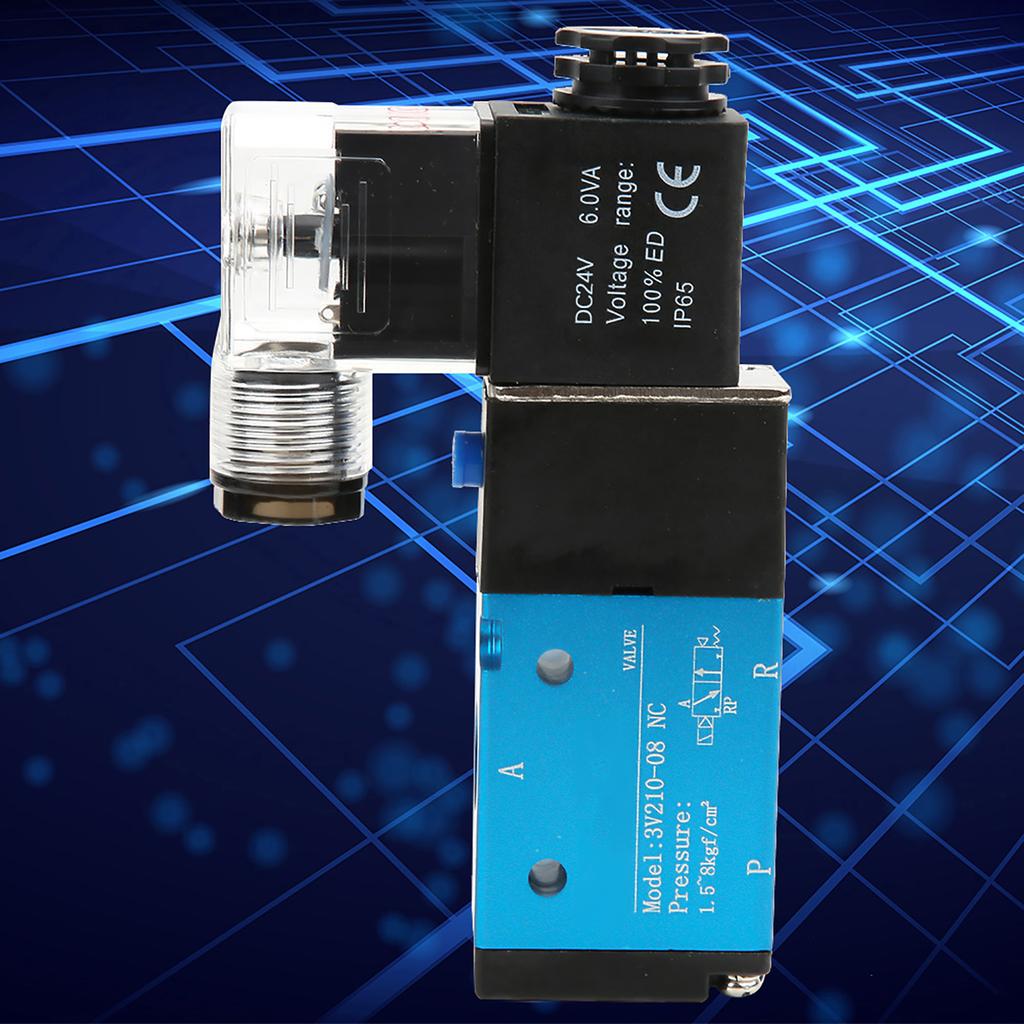

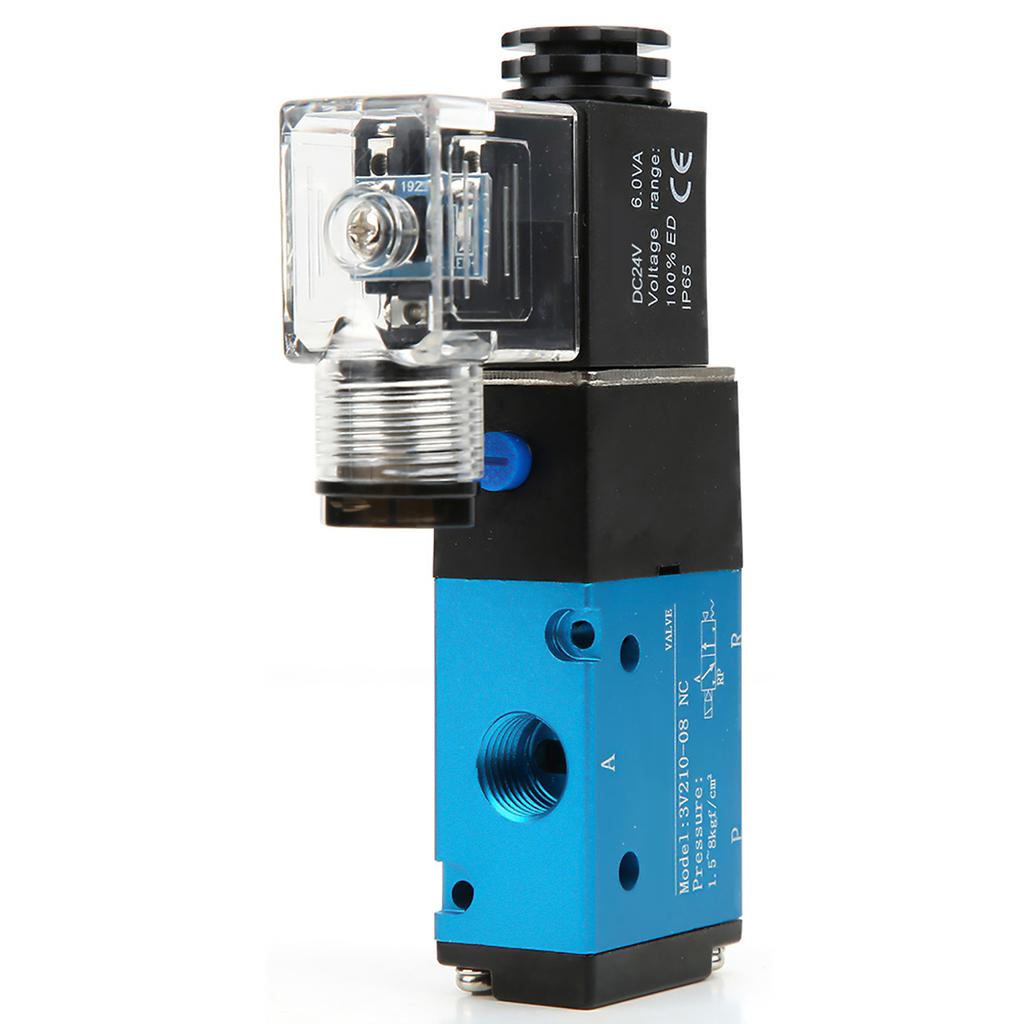

3V210 08 2 Position 5 Way Solenoid Valve PT1 4in 1.2MPa 170Psi Solenoid Valve IP65(DC24V)

Features: Sufficient copper coil, not easy to burn,long service life, more durable. High frequency pilot head, not easy to get stuck, high sensitivity. 6 ring imported seal ring, strong air tightness, long term use is without leaking. Exquisite threaded holes for screw holes without burrs, high quality. Good maximum pressure endurance and high effective area. Specification: Working Medium: Air (40 Micron Filter) Model: 3V210 08 Coil: DC24V DC12V AC110V AC220V(Optional) Connection Diameter: Intake = Outlet = PT1 4in Exhaust = PT1 8in Effective Area: 16 Square Millimeters (CV = 0.89) Working Temperature: 5 60 degrees C Working Pressure: 0.15 0.8MPa (21 114PSI) Power Consumption: 4.8W Voltage Range: 15percent + 10percent Insulation And Protection Rating: IP65 Frequency: 5 S Minimum Excitation Time: 0.05 Seconds or Less Maximum Pressure Resistance: 1.2Mpa (170psi) Package List: 1 x Solenoid Valve .
