Characteristics:

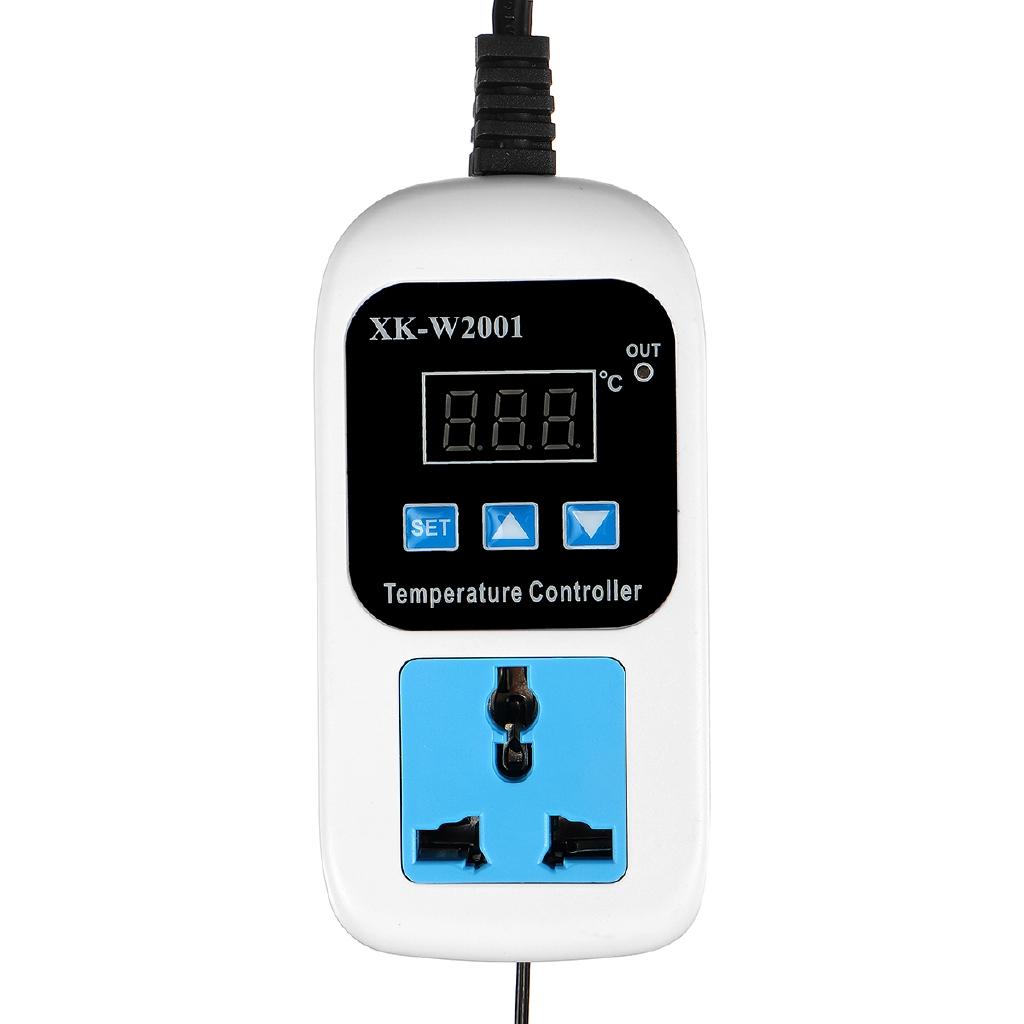

Mini temperature controller with socket
With clear digital display for easier reading
Wide temperature measurement range
Direct power output
High control accuracy 0.1 degrees Celsius
Can be used with domestic freezers, water tanks, refrigerators, industrial refrigeration, steam, industry.
Specifications: Model:
Temperature measurement range: -50 ℃ ~ 110 ℃
Temperature control range: -50 ℃ ~ 110 ℃

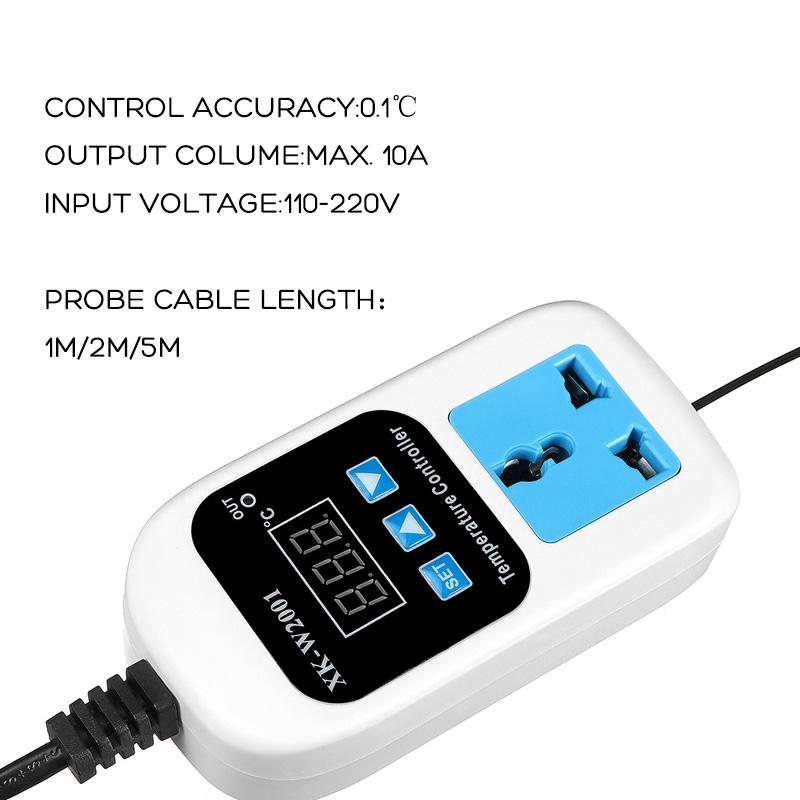

Control precision: 0.1 ℃

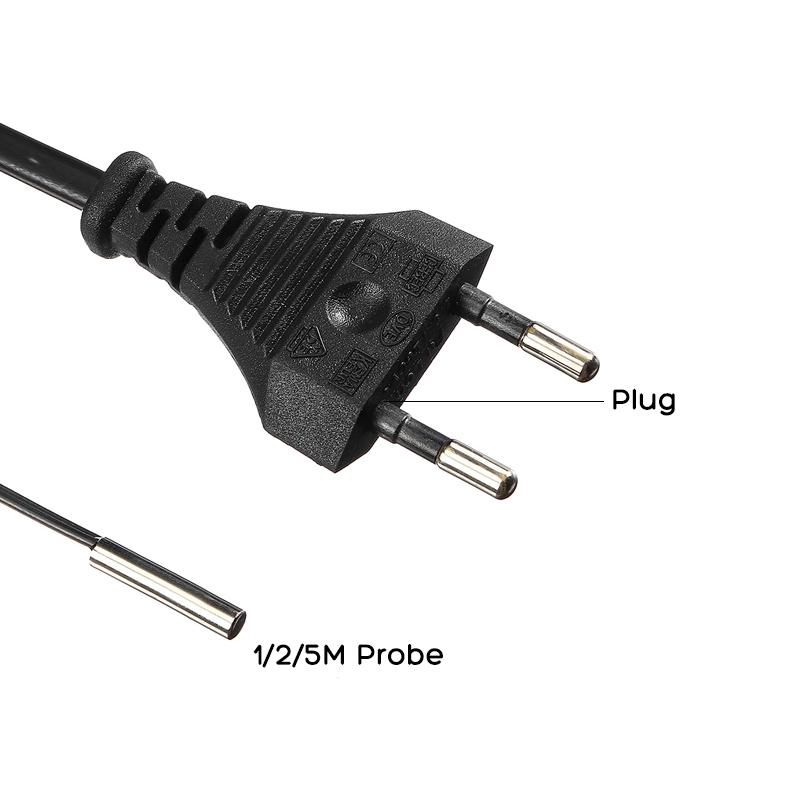

Measure input: NTC10K L = 1 waterproof probe
Output: DC
Output column: Max. 10a
Input voltage: 110-220V
Model: XK-W2001

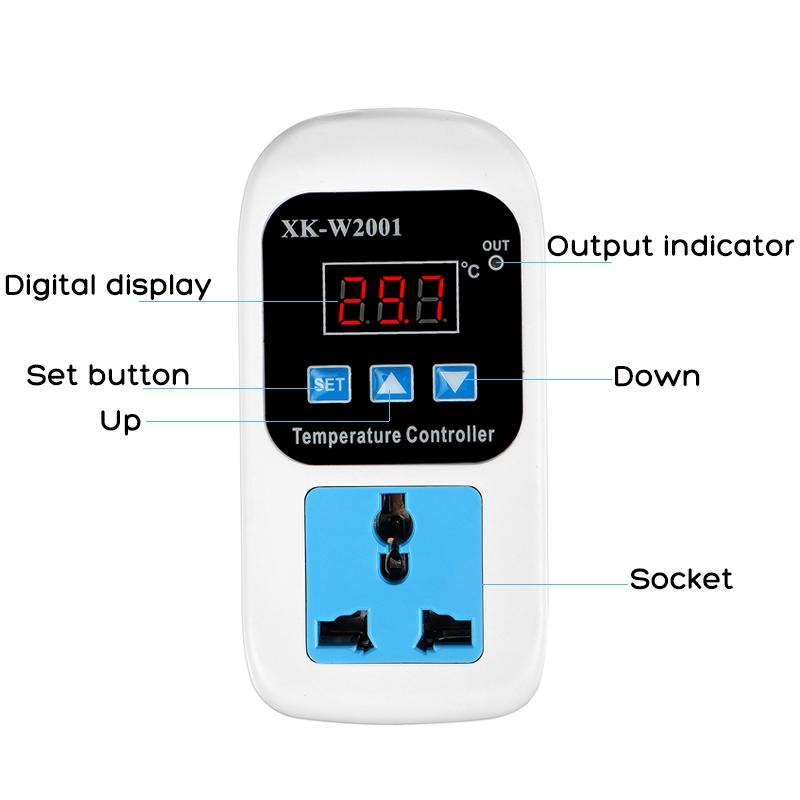

Digital display
Power: 1500W

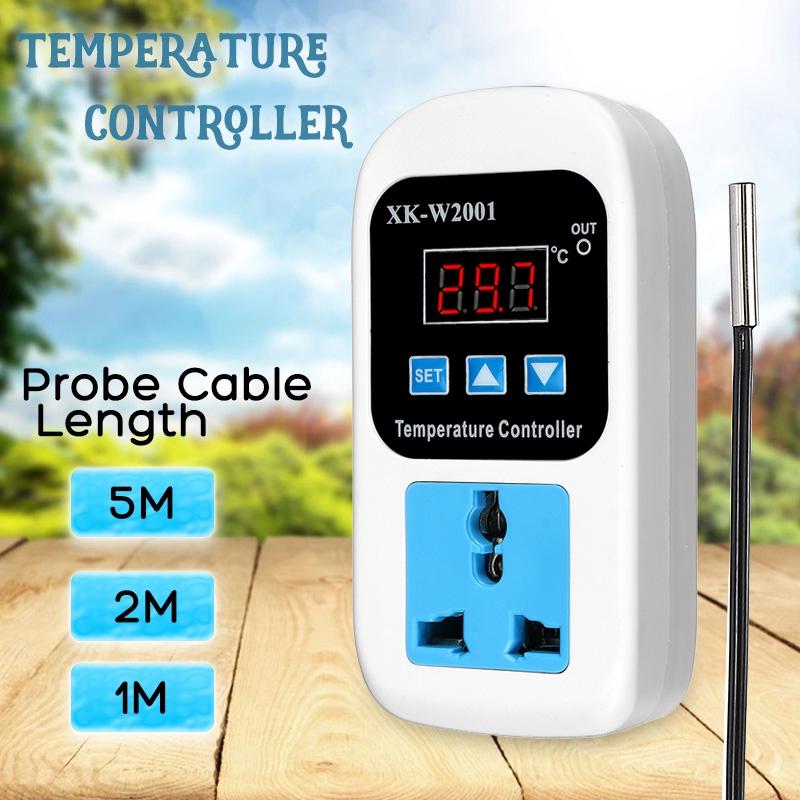

Measure cable length: 1M, 2M, 5M
Important Use Instructions:
P0 default temperature settings
Press the SET button to enter the internal menu. The default display is P0, press the SET button again to SET the desired initial temperature with the up and down button.
P1 Stop Temperature Settings
Press the setting button to enter the internal menu. The digital screen is P0 switch to P1 by the up and down button. Press the setting button again and set the desired stop temperature with the up and down button.
P2 Calibration Temperature Setting
Similarly, enter the internal menu. Switch to P2 using the up and down button. Then press the faded setting button. Set the desired calibration temperature with the up and down button.
P3 Delay Time Setting
Similarly, enter the internal menu. Change to P3 by pressing the up and down button. Press the setting button again and set the desired delay (in minutes) with the up and down button.
Package included:
1x Temperature Controller
