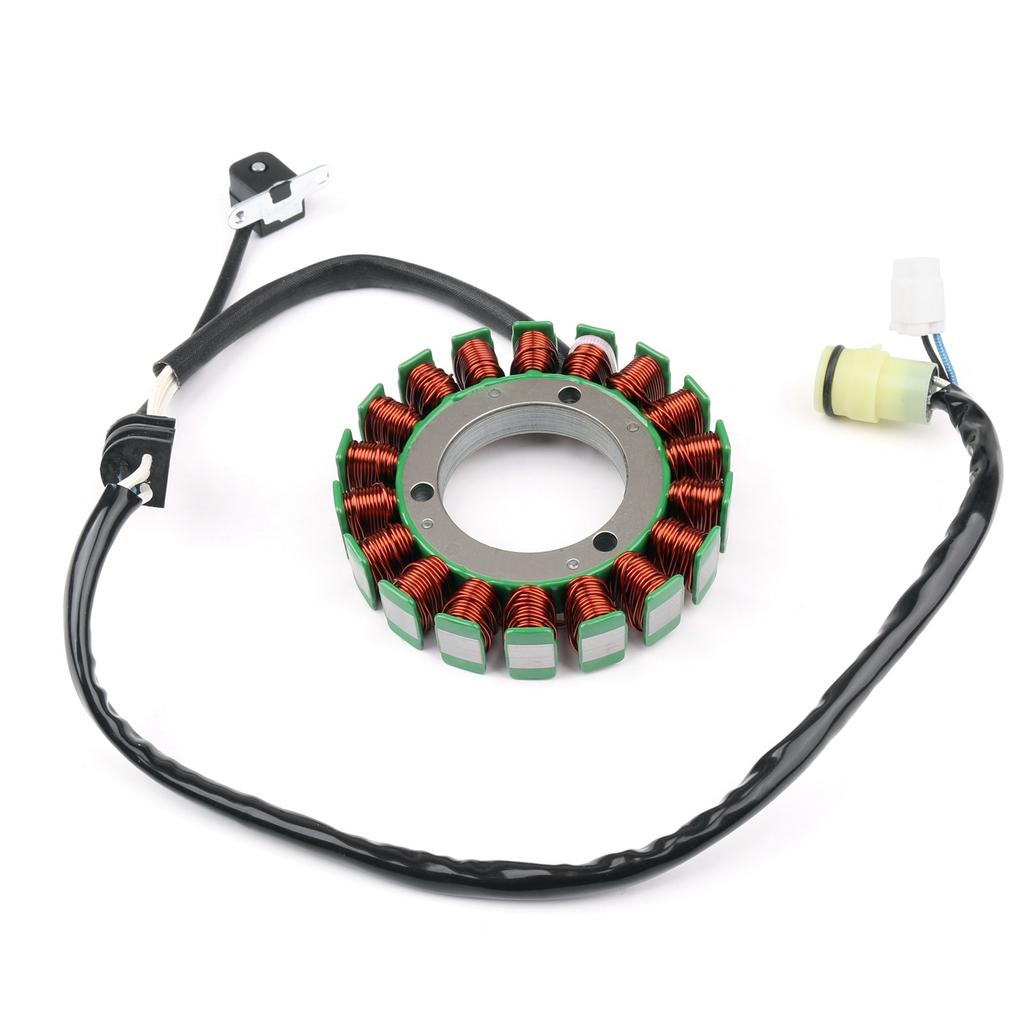

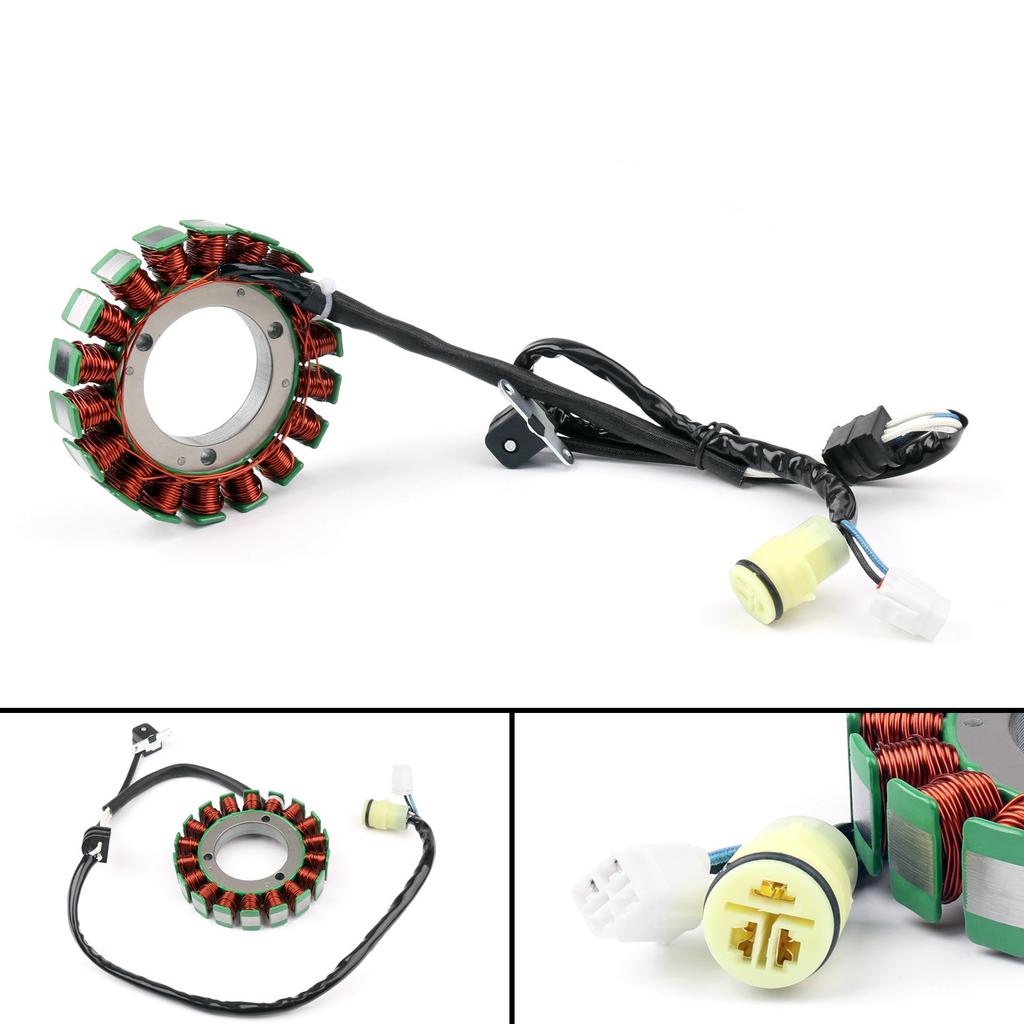

Magneto Stator Generator For HiSUN UTV 500 700 MSU YS Massimo Bennche Supermach

Magneto Generator Engine Stator Coil Fit For UTV,500,700,HS,MSU,YS,TSC,HiSUN,MASSIMO,BENNCHE

Features: Direct replacement to your original unit Plug-and-play, direct fit, easy installation. Highest grade lamination materials. Pick up pulsar coil included. Connector included. Rubber grommet included. All products shipped are tested.

Specifications: Condition: Aftermarket 100% Brand New Quanity: 1PC Type: Stator Coil

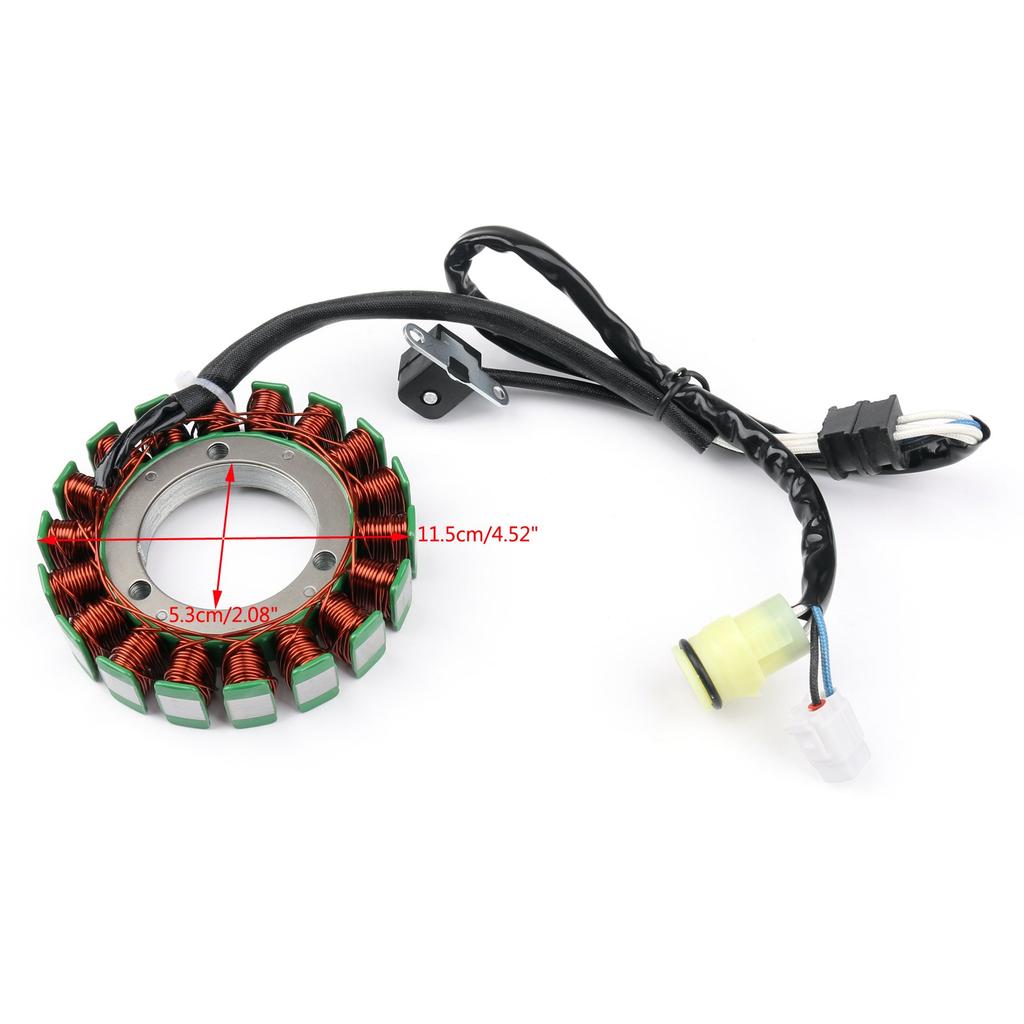

Dimensions : Interior diameter : Approx. 53mm / 2-11/64 in Exterior diameter : Approx. 115mm / 4-17/32 in Length of wires stator to grommet : Approx. 150 mm Length of wires grommet to plug : Approx. 450 mm Length of pickup coil's wire to grommet : Approx. 100 mm

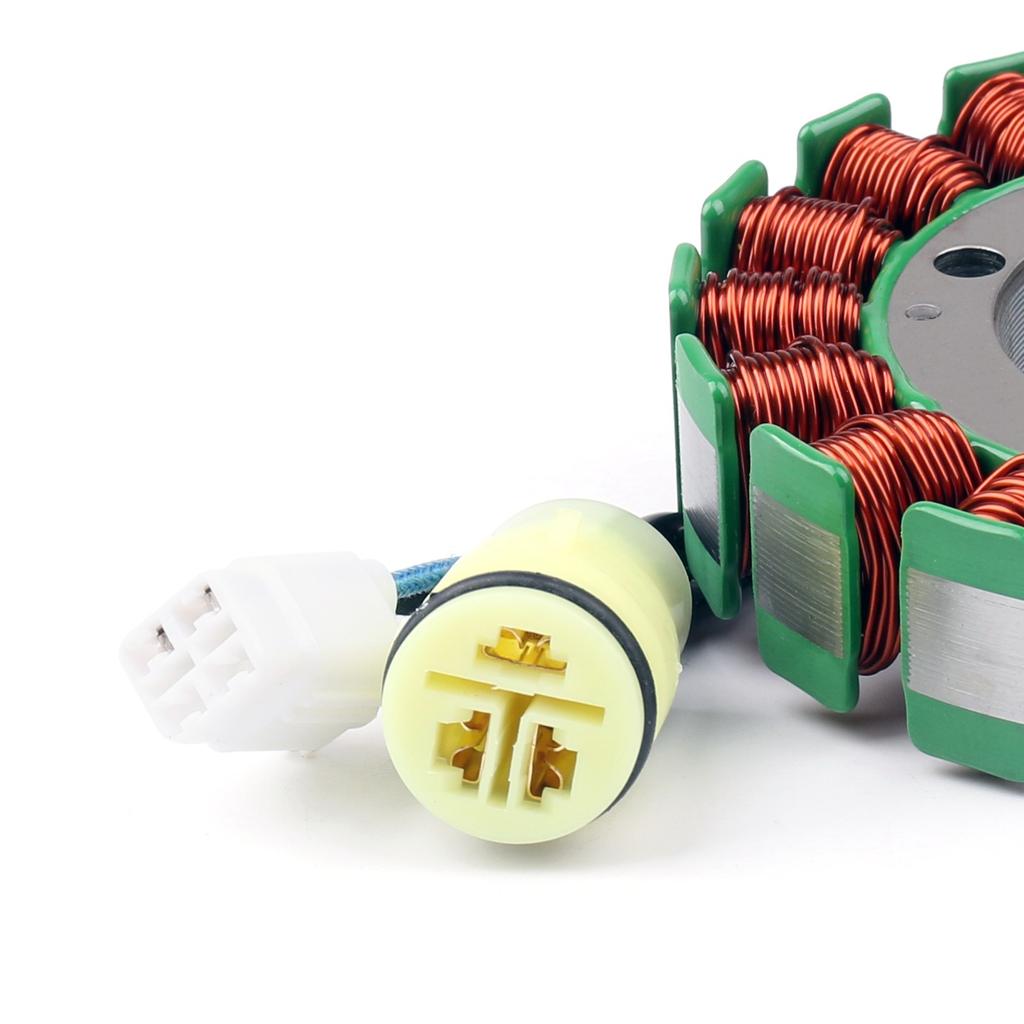

other specifications : Number of wires: 5 Number of pins: 3 + 2 Number of plugs: 2 Number of fixation holes: 3 Number of poles : 18

Replacement Part Number: LU022587 327700001 31120-004-000 31100-F39-0000 31100-F39-0002

Fits Models: Fits Most (but not ALL) EFI and Carburetor HiSUN 500 AND 700 UTV'S INCLUDING, MASSIMO, SUPERMACH, BENNCHE,MENARDS YARDSPORT and Many More ! Not for 400 and 800cc UTVs. Not for NEBULA ENGINES on some brands. Not for LINHAI Engines.

Fit For Excalibur UTV700-4,UTV700-5 Fit For Menards Yardsport YS700 Fit For Supermarch UTV700-BF-TL Fit For Menards Yardsport EFI 700. HS500UTV Fit For Bennche Bighorn 500 2010-2016 Fit For Bennche Bighorn 700 2010-2016 Fit For Bennche Bighorn 700X 2010-2014 Fit For Bennche Cowboy 500 2015-2016 Fit For Bennche Cowboy 700 2015-2016 Fit For Bennche Gray Wolf 500 2010-2016 Fit For Bennche Gray Wolf 700 2010-2016 Fit For Hisun Motors Corp USA Forge 450 2016 Fit For Hisun Motors Corp USA Forge 500 2016 Fit For Hisun Motors Corp USA Forge 550 2016 Fit For Hisun Motors Corp USA Forge 700 2016 Fit For Hisun Motors Corp USA Forge 750 2016 Fit For Hisun Motors Corp USA HS500 2014-2017 Fit For Hisun Motors Corp USA HS700 2014-2017 Fit For Hisun Motors Corp USA HS750 2016-2017 Fit For Hisun Motors Corp USA Sector 450 2015-2017 Fit For Hisun Motors Corp USA Sector 550 2015-2017 Fit For Hisun Motors Corp USA Sector 750 2015-2017 Fit For Hisun Motors Corp USA Strike 550 2017 Fit For Hisun Motors Corp USA Tactic 450 2017 Fit For Hisun Motors Corp USA Tactic 750 2017 Fit For Hisun Motors Corp USA Vector 450 2016-2017 Fit For Hisun Motors Corp USA Vector 500 2016-2017 Fit For Hisun Motors Corp USA Vector 550 2016-2017 Fit For Hisun Motors Corp USA Vector 700 2016 Fit For Hisun Motors Corp USA Vector 750 2016-2017 Fit For Massimo Alligator 500 2015-2016 Fit For Massimo Alligator 550 2015-2016 Fit For Massimo Alligator 700 2015-2016 Fit For Massimo Alligator 700 4 2015 Fit For Massimo Knight 500 2016 Fit For Massimo Knight 700 2016 Fit For Massimo MSA500 2015 Fit For Massimo MSU500 2015-2016 Fit For Massimo MSU700 2015 Fit For Massimo MSU700 4 2015 Fit For Qlink FrontRunner 500 2010-2013 Fit For Qlink FrontRunner 700 2010-2013 Fit For Qlink Rodeo 500 2008-2013 Fit For Qlink Rodeo 700 2008-2013 Fit For STELS ATV 500 H Fit For STELS ATV 700 H Fit For STELS UTV 500 H Fit For STELS UTV 700 H

(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included: 1x Generator Stator

NOTICE: Before installing your new stator

Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier. Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer. The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
