WiFi Mini Reverse Camera Plug-n-Play Lighter Powered

I. Product Introduction

Truck WIFI Rear View Camera is the best intelligent vehicle product, which can be installed in front, back, left and right of the blind area, to achieve safe driving. Widely used in cars,

● Simple installation, low cost implementation of intelligent visual astern.

● The U.S. imports H. 264 chips with clear and smooth images.

● High power WIFI module, strong signal, long transmission distance.

2 main functions

● The visual function of cycling backwards

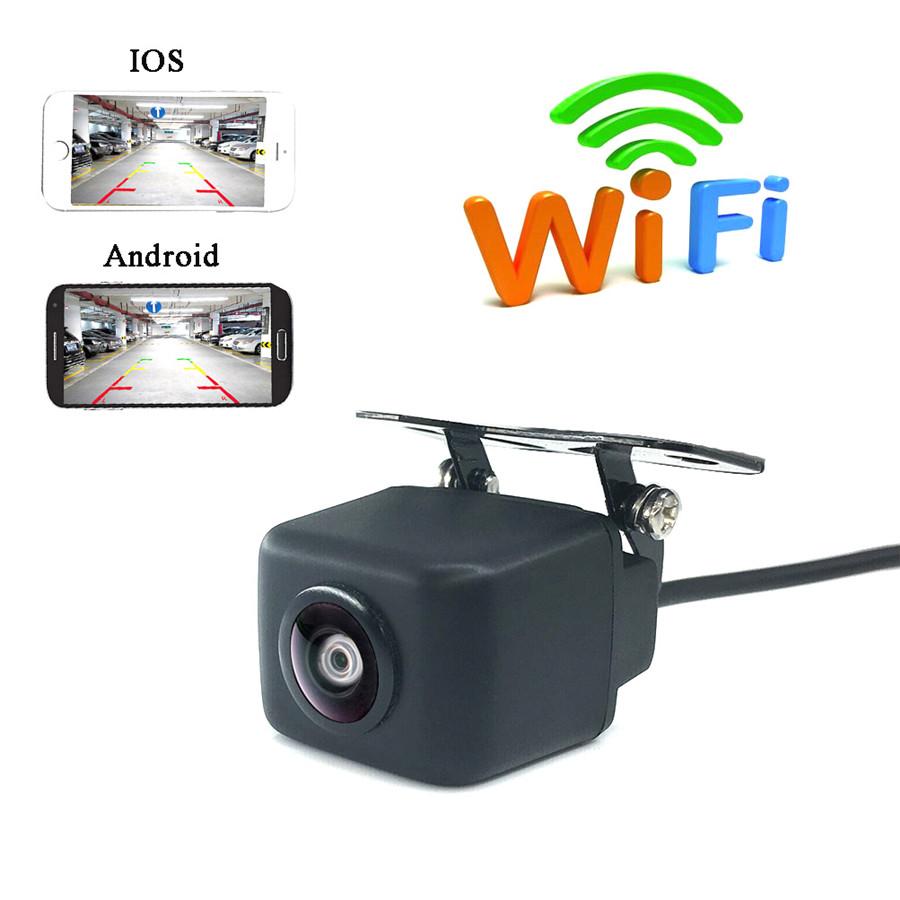

Through the WIFI of the camera, the smart device can realize HD reverse rear view.

● Functions of the intelligent electronic rearview mirror

Through the device end to watch in real time, after entering the rear view video, you can watch in real time. View the reason behind the vehicle and view from the whole perspective

● Ending intelligent background start, voice call start

In the background of android system, the signal of astern trigger is detected. It starts automatically without manual access. Apple system voice call start, static IP link, Internet access and reverse simultaneously.

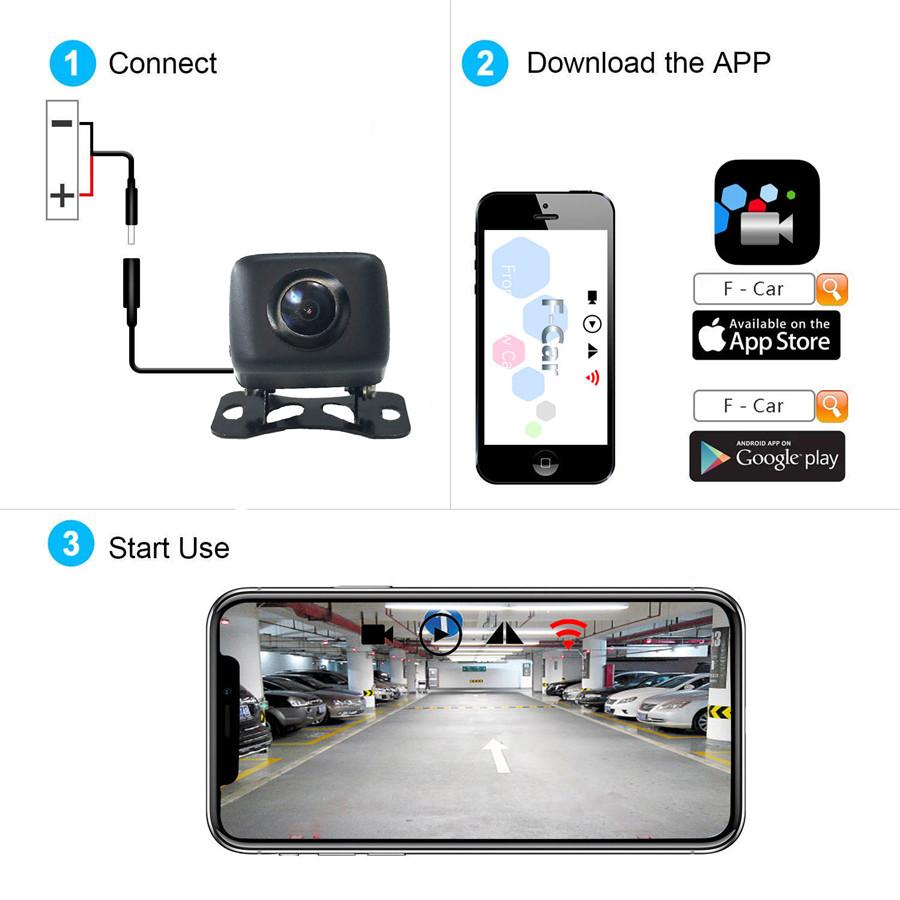

3 Download the application.

● Scanning and downloading qr codes; Open the scan window and scan the qr code of the product manual.

IOS Download Android Download

● Search for download

Apple devices enter the APP Srore search; F - Car download

Android devices go into Google play search; F - Car download

4. Use skills

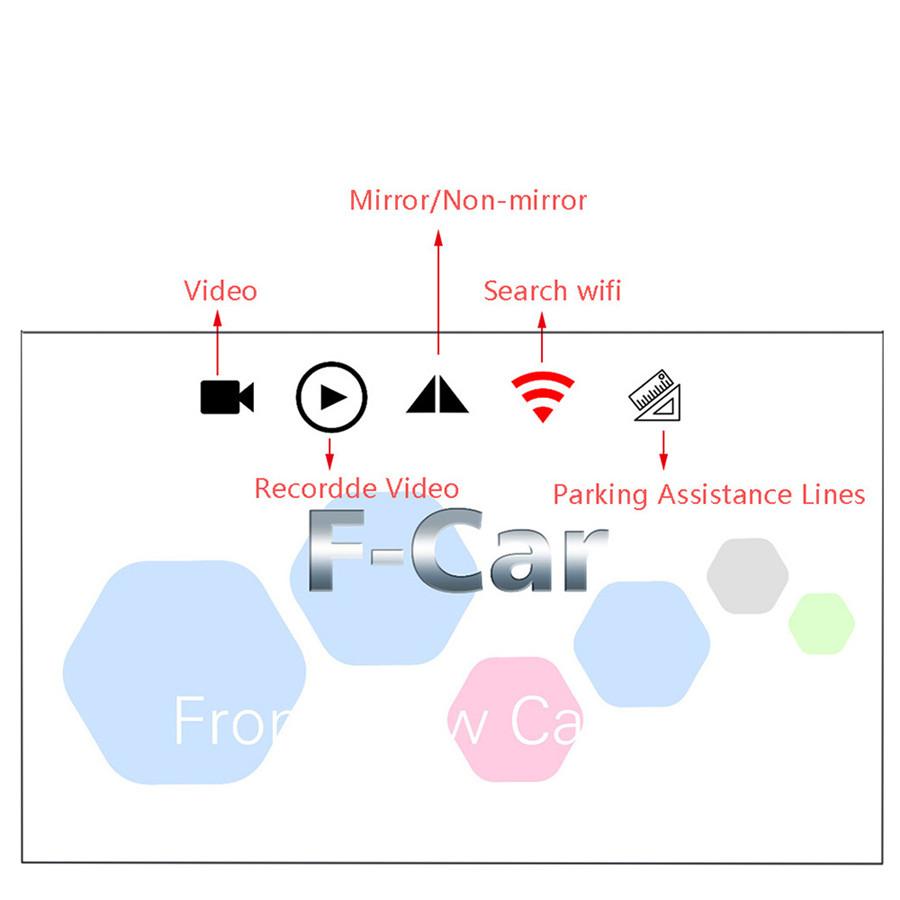

● Terminal interface icon

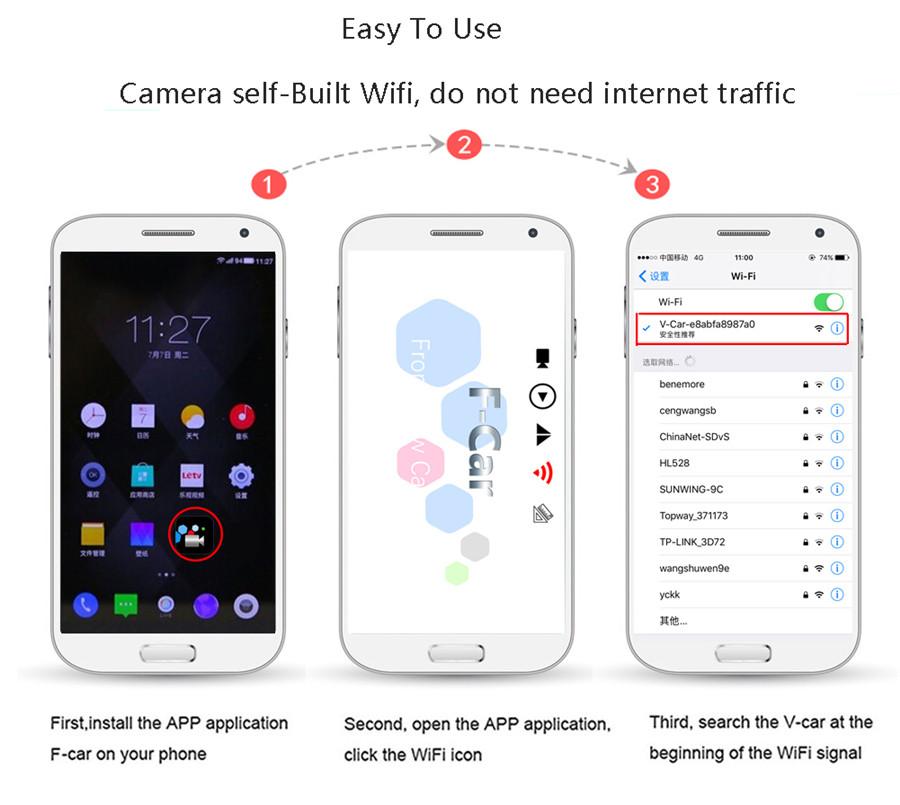

● Android device use; After connecting to the WIFI of V-Car SSID, the APP video will pop up automatically. When 4G network is needed, click exit, and the connection between V-Car and the software background will be automatically disconnected.

●IOS old system usage;

1. After software installation, set static IP; Connect to V-Car name WIFI,

2. enter the WIFI setting interface, remember the two lines of Numbers under "DHCP" (IP address. Subnet mask), click "static" here, and fill the two lines of Numbers under the static button (IP address. Subnet mask).

3.Click back to set successful. Static IP can be set to realize simultaneous communication between WIFI and 4G without affecting the phone's Internet access.

●New IOS system system usage;

1 Find V-Car name WiFi.

2 Remember in the IPV4 address bar; IP Address, Subnet Mask, Router, these three lines of Numbers.

3 Click "Configure IP", select "Manual", fill in the following three rows of Numbers in the bottom, click save.

5. Product installation (very important, please read carefully)

1. First, turn off the on-board power supply, and it is strictly prohibited to power the camera without a good connection.

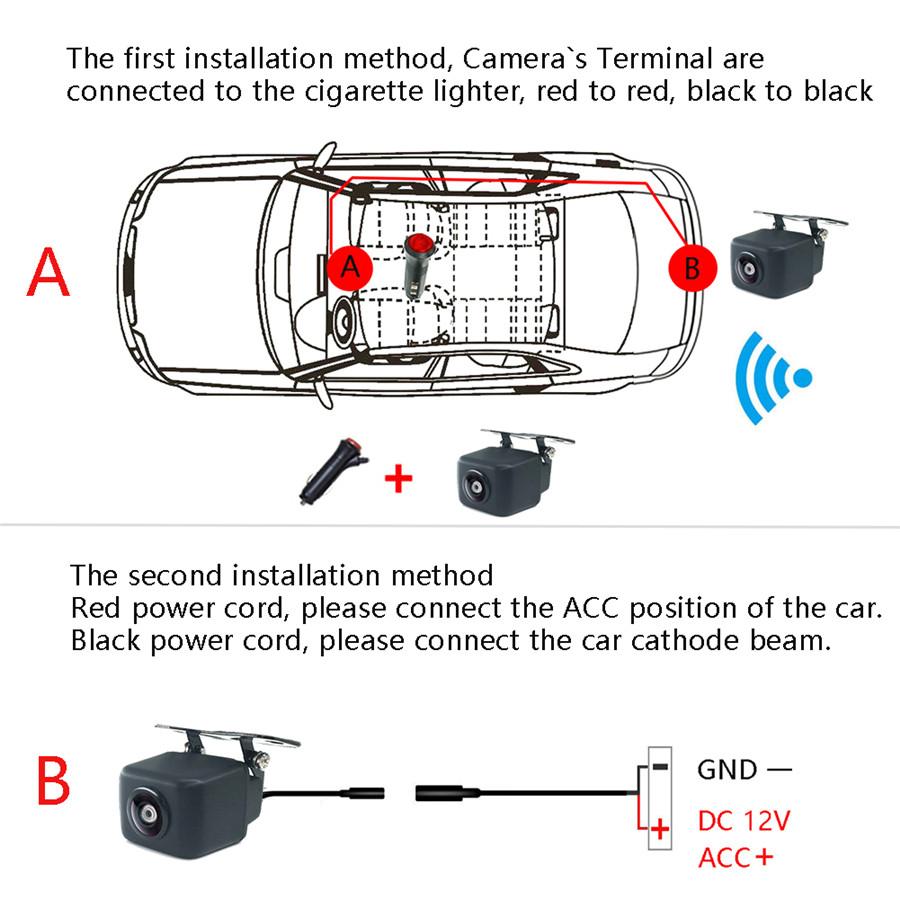

2. Determine the installation position of vehicle camera. (there are two installation methods)

The first installation method is to select the position of the camera and accurately locate the wiring position of the power cables.

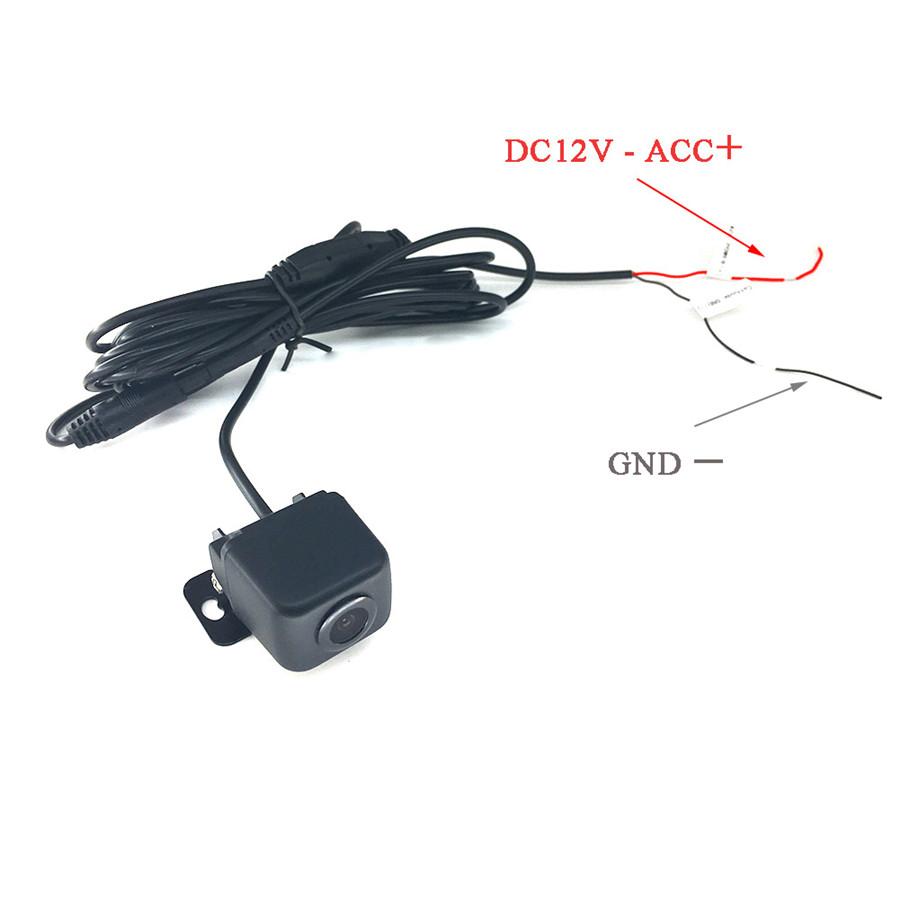

●Terminal ACC power anode (red power cord), please connect the ACC connection position of the car.

●Terminal cathode grounding (black power cord), please connect the car cathode beam.

The second installation method, ACC and GND are connected to the cigarette lighter, red to red, and black to black.

3; Select the screw position of the camera bracket and open the hole with the electric drill. Connect the correct position of the power cord, adjust the best reversing Angle and fix the bracket with screws.

6. Troubleshooting

1. No image

Make sure the camera is connected correctly, open the WIFI list on your phone, and see if you can find the v-car hotspot generated by the camera.

2. Background operation

You need to turn on the phone Settings and set it to run in the background.

3 Weak signals

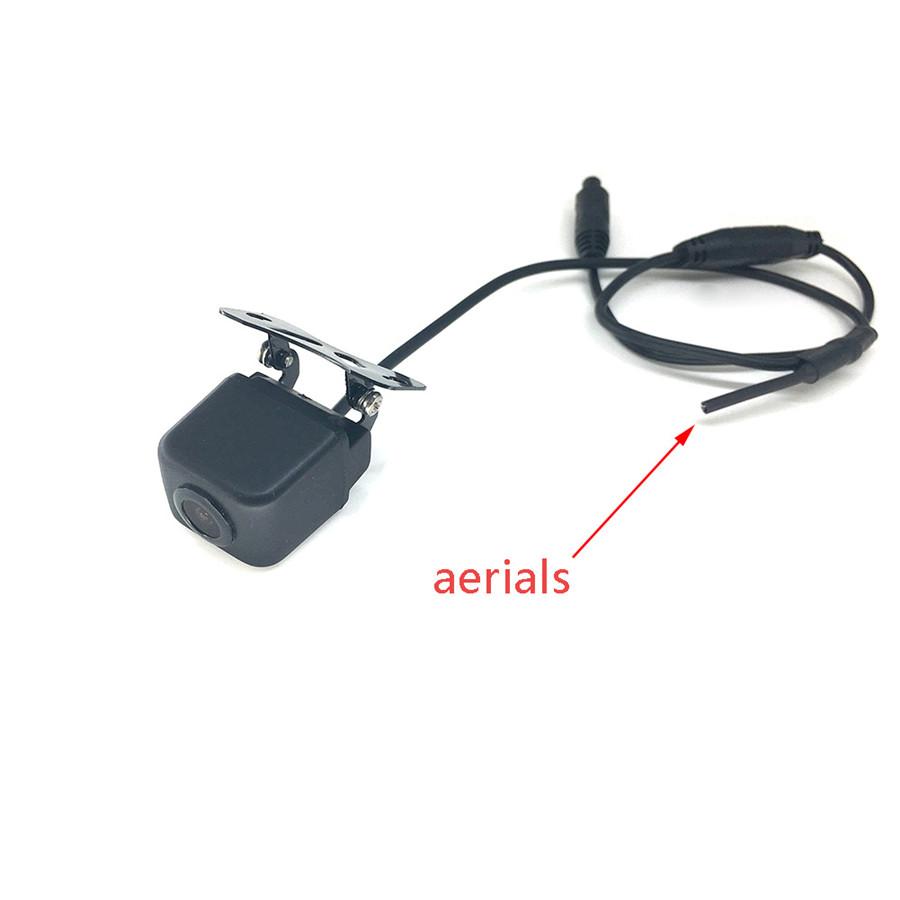

Check whether the antenna is tightened, install the antenna anti-loose gasket, the antenna needs to avoid shielding and metal contact.

Product list:

Camera, bracket, screw, extension cord, specification, antenna spacer
